Easy Operation
Multifunctional Instrument Panel
Easy read instrument panel installs in between steering wheel and left front side wind shield. It display the status of forklift performance without interfering by steering wheel operations.
Adjustable Steering Wheel Column
Compact steering column panel is with streamline design. Provide flexible operations & great comfort.
High Stability
Hand Brake
Hand brake is equipped with micro switch to aviod inproper touch accidently and to ensure the safety.
LED Light
Independent front light and directional lights. Provide longer service life with much lower power consumption.
Integral Heavy Duty Chassis
A strong no-bolt integral heavy duty chassis gives the driver more protection from falling loads, suite for all kind working surface.
Great Performance
Small Steering Wheel + New Rear Axle = EASY AND SMOOTH TURNING
Smaller 300mm steering wheel easy to operate and reduce operator's arm and shoulder's workload. The new axle provides wider steering angles to 80 degree and reduces to a smaller turning radius.
High Performance Low Fuel Consumption Engines
The strong but low emission engine will satisfy the operators in any given circumstance, time and time again. New 9L Plus series using high performance and low fuel consumption engines include Isuzu, Yanmar and Nissan engines. All engines meet latest emission regulations.
Ergonomics
Internal Hidden Tilt Cylinder
Internal tilt cylinder avoids and reduces scrape possibility. Enlarge access space and given better appearance.
Non-Slip Entry Step
Large foot space and non-slip make the operator get on and get off the vehicle more easily.
Hydraulic Control Levers
The mechanical-hydraulic control lever disposed at the front of the panel. The ergonomic headlines designed to help reduce the driver‘s arm fatigue.
Comfortable Seat
- Ergonomic sharp design and adjustable backrest
- Adjustable forward and reverse
- Retractable safety belt
- Document bag

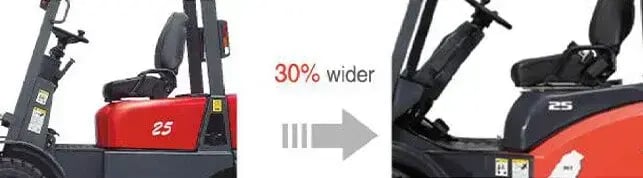

Spacious Operation Space
Accelerate/Brake/ Inching pedal all configurations with ergonomic design. Wide-open foot space provides the comfortable foot activity space. It is about 30% wider than 7 series.
The enlarged space give operator great comfortable and less stress, make the operator get on or get off the vehicle more easily.
Clear View For Operator
SPECIFICATIONS
Model
PFG18C
PFG25C
PFG30C
Load capacity
3500 lbs
5000 lbs
6000 lbs
Length (w/o forks)
85.2 in
92.5 in
92.5 in
Width
38 in
44.4 in
44.4 in
Height (overhead guard)
80.3 in
84.3 in
84.3 in
Travel speed (laden)
8.1 mph
9 mph
9 mph
Travel speed (unladen)
8.1 mph
9.3 mph
9.3 mph
Lift speed (laden)
139.8 fpm
103.1 fpm
103.1 fpm
Lift speed (unladen)
141.7 fpm
107.9 fpm
107.9 fpm
Turning radius
75.4 in
80.3 in
90.3 in
Engine
WG2503-L-E3
WG2503-L-E3
WG2503-L-E3
Controller
N/A
N/A
N/A
Rated output / Speed
41.5@2700 kW/rpm
41.5@2700 kW/rpm
41.5@2700 kW/rpm
Battery (min.capacity)
N/A
N/A
N/A
Additional Options
Dual Wheel
Upward Exhaust Pipe
Mast Lock
Climate Controlled Full Cabin
Pre-Cleaner Engine Air Intake
Side Shift
Hinged Fork
Rotating Fork
Shovel
Bale Clamp

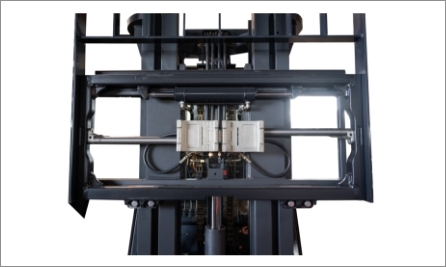

Side Shift Fork Positioner
