Easy Operation
Multifunctional Instrument Panel
Easy read instrument panel installs in between steering wheel and left front side wind shield. It display the status of forklift performance without interfering by steering wheel operations.
Adjustable Steering Wheel Column
The easy-handling steering wheel column with tilt adjustment helps to provide the ideal operating position and improve performance.
Electric F/R Control Lever
Integral forward/reverse & direction lever offers easy shifting between forward and reverse while keeping both hands on the wheel. It is easy to reach and fast to change direction.
High Stability
Mechanical Handbrake
Hand brake is equipped with micro switch to aviod inproper touch accidently and to ensure the safety.
High Mounted Combination Rear Lights
Integral OHG light include side, reverse, rear lights, brake and direction indicators.
Large Front Lights
Integral head light and side lights.
Integral Heavy Duty Chassis
A strong no-bolt integral heavy duty chassis gives the driver more protection from falling loads,suite for all kind working surface.
Great Performance

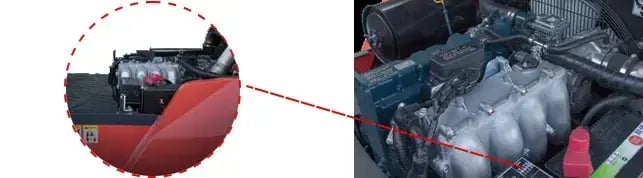

High Performance Low Fuel Consumption Engines
The engine has low original emissions, a high post-processing regeneration efficiency and low regeneration triggering criteria.
Easy Maintenance
The Kubota engine is highly integrated and has a compact engine structure and parts to be maintained arranged on one side to enable easy maintenance.
Outstanding Performance
With stable idle loading performance, full torque output, high performance of resistance to stalling at low speeds.
Great Comfort
With a built-in high-pressure common rail, fuel injector etc., the engine has low noise, comfortable sounds and less vibration.
Ergonomics
Internal Hidden Tilt Cylinder
Internal tilt cylinder avoids and reduces scrape possibility. Enlarge access space and given better appearance.
Non-Slip Entry Step
Large foot space and non-slip make the operator get on and get off the vehicle more easily.
Hydraulic Control Levers
The mechanical-hydraulic control lever disposed at the front of the panel. The ergonomic headlines designed to help reduce the driver‘s arm fatigue.
Comfortable Seat
Ergonomic sharp design and adjustable backrest.
Adjustable forward and reverse.
Retractable safety belt.
Forward & Backward Visibility
Spacious Operation Space
Accelerate/Brake/Inching pedal all configurations with ergonomic design. Wide-open foot space provides the comfortable foot activity space. The enlarged space give operator great comfortable and less stress, make the operator get on or get off the vehicle more easily.
SPECIFICATIONS
Model
PFD 40
PFD 45
PFD 50
Load capacity
4000 kg (8800 lbs)
4500 kg (9900 lbs)
5000 kg (11000 lbs)
Length (w/o forks)
3125 mm (123 in)
3175 mm (125 in)
3325 mm (131 in)
Width
1490 mm (58.7 in)
1490 mm (58.7 in)
1490 mm (58.7 in)
Height (overhead guard)
2270 mm (89 in)
2270 mm (89 in)
2270 mm (89 in)
Travel speed (laden)
20 km/h (12 mph)
20 km/h (12 mph)
20 km/h (12 mph)
Travel speed (unladen)
25 km/h (16 mph)
25 km/h (16 mph)
25 km/h (16 mph)
Lift speed (laden)
492 mm/s (96.9 fpm)
492 mm/s (96.9 fpm)
492 mm/s (96.9 fpm)
Lift speed (unladen)
498 mm/s (98 fpm)
498 mm/s (98 fpm)
498 mm/s (98 fpm)
Turning radius
2700 mm (106 in)
2875 mm (106 in)
2950 mm (107 in)
Engine
KUBOTA WG3800
KUBOTA WG3800
KUBOTA WG3800
Controller
N/A
N/A
N/A
Rated output / Speed
70@2600 kW/rpm
70@2600 kW/rpm
70@2600 kW/rpm
Battery (min.capacity)
N/A
N/A
N/A
Additional Options
Swing Out LPG Bracket
Dual Wheel
Mast Lock
Cabin
Climate Controlled Full Cabin
Pre-Cleaner Engine Air Intake
Side Shift
Side Shift Fork Positioner
